The Route Maintenance screen provides the means to enter a new route association or edit an existing association. Once a NCIT code is selected, then the appropriate prescription route may be associated to it.





Select Web Client > Tables > Clinical > Route Crosswalk > New

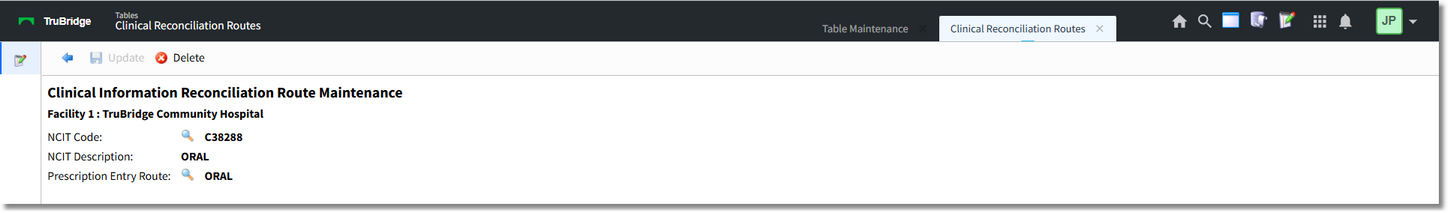

Clinical Information Reconciliation Route Maintenance





The following fields are available:

•NCIT Code: Select the magnifying glass icon to launch the NCI Thesaurus List. NCIT codes may be searched by Description or Code. Either double-click the desired code or select the desired code and then select OK. The selected code will display to the right of the magnifying glass icon.



•NCIT Description: Displays the description of the selected NCIT code.



•Prescription Entry Route: Select the magnifying glass icon to launch the Prescription Entry Routes table. Routes may be searched by Route, Prefix, Hospital Route or Display Order. Either double-click the desired route or select the desired route and then select OK. The selected route will display to the right of the magnifying glass icon.



NOTE: If a Prescription Entry Route that has already been associated is selected before selecting a NCIT code, the NCIT code association will automatically display.



When attempting to associate a NCIT code for an association that already exists, users will be prompted with the message, "The selected NCIT code is already attached to another route."



The Action Bar has the following options:



•Back Arrow: Returns to the Route Crosswalk table. If unsaved information exists when the Back Arrow is selected, users will be prompted with the message, "Are you sure you wish to exit without saving?" with "Yes" and "No" options. Selecting "Yes" will return to the Route Crosswalk table without saving the entered information. Selecting "No" will return to the maintenance screen so that the entered information may be saved.



•Update: Saves the current information and exits back to the Route Crosswalk table. This option will become available when new information has been entered.



•Delete: Prompts the user with the message, "Are you sure you wish to remove this record?" with "Yes" and "No" options. Selecting "Yes" will remove the record from the Route Crosswalk table. Selecting "No" will return to the maintenance screen. This option will become available when editing an existing record.
