<< Click to Display Table of Contents >> Navigation:  Audit Log Reports > System Access Report

The System Access Report is used to track attempts made to access Thrive. This report will display the success and failures of logins accessing the system.





Select Web Client > Report Dashboard > System Access Report

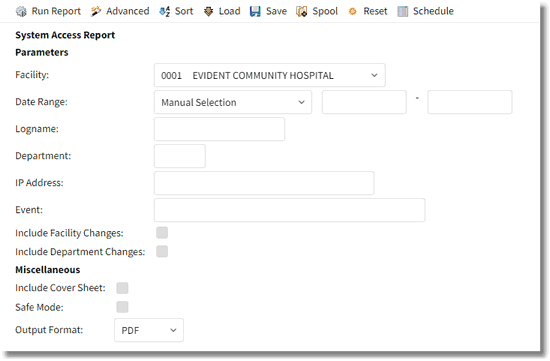

System Access Report Parameters





•Facility: Select the desired facility to view audit information.



•Date Range: Enter the desired date range to view audit information. When the date is entered as MMDDYY, the system will automatically change it to MMDDCCYY format.



•Logname: Enter the desired login to view audit information. Leave this field blank to view all logins.



•Department: Enter the desired department to view audit information. Leave this field blank to view all departments.



•IP Address: Enter the desired IP Address to view audit information. Leave this field blank to view all IP addresses.



•Event: Enter a specific Access Event to view on the audit.



•Include Facility Changes: Select this option to include any facility changes on the audit.



•Include Department Changes: Select this option to include any department changes on the audit.



•Include Cover Sheet: Select this option to have a cover sheet pull with the Date and Time the report was run, User, Facility, Date Range of report, User Name and Section.



•Safe Mode: Select this option if the report would not build due to bad data being in a field. If the report has bad data, a message will appear stating to run report using the Safe Mode. If selected, Safe Mode will replace all of the bad characters with a ?. This will allow the intended report to generate. The bad data may then be seen and can be corrected from the account level.



•Output Format: Use the drop-down box to select one of the following report Format options:

▪HTML

▪PDF

▪XML

▪CSV

▪MAPLIST

▪TXT



•Page Orientation: Use the drop-down box to select either Landscape or Portrait as the page orientation. The default is Landscape orientation.

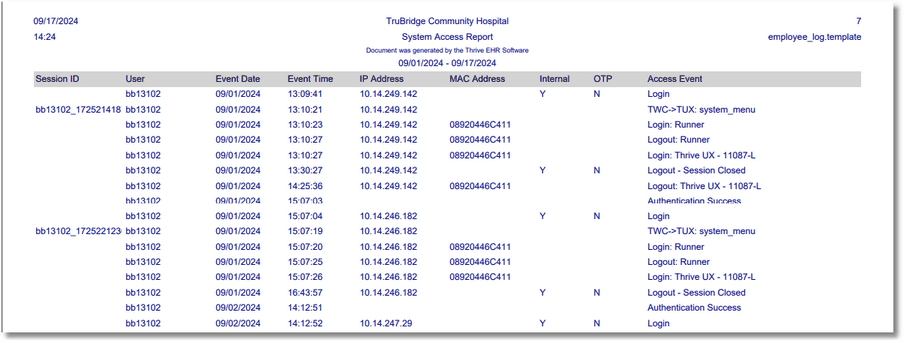

System Access Report







•Session ID: A unique identifier assigned to each user at the time of login and remains with the user until he/she logs out. The purpose of the Session ID is to make it easier to trace through an auditing scenario.



•Login: Pulls the login of the employee.



•Event Date: Pulls the date an event occurred.



•Event Time: Pulls the hour, minute and seconds the event occurred.



•Event: Pulls Success if the login successfully logged in to the system. Will pull Failure if the login was unsuccessful logging in to the system.



•IP Address: Pulls the IP Address from where the event occurred.



•MAC Address: Pulls the MAC Address of the device from which the event occurred.



•Internal: Pulls a Y if the login event occurred internally. An N will pull if the login event occurred externally.



•OTP: Pulls a Y if the login event used multi-factor authentication. An N will pull if the login event did not use multi-factor authentication.



•Access Event: The information that pulls to this column will depend on if the event was a Success or a Failure.

▪If the event was a success, one of the following Access Events will pull:

oLogin: The employee logged in to the system.

oLogout: The employee logged out of the system.

oFacility Change: The employee changed facilities followed by the facility that was logged in to and the device's TTY number.

oDepartment Change: The employee changed departments followed by the department number that the employee changed to and the device's TTY number.

oAccess Attempt from non-FIPS Compliant Device: The employee was able to successfully login, but it was done from a non-FIPS compliant device.

▪If the event was a failure, one of the following Access Events will pull:

oLogin Unknown to System: Attempt was made to login to the system with an invalid login.

oKnown Login - Authentication Failure: Attempt to login with a known login was made, but an incorrect password was used.

oKnown Login - Login Disabled: Attempt to login with a known login was made, but the login has been disabled.

oKnown Login - Password Locked: Attempt to login with a known login was made, but the login has been locked due to the amount of failed login attempts being exceeded.

oReset Password by 'login': The user's password has been reset in System Administration. The login displaying in the Access Event message is the login of the user that reset the password.



NOTE: To get a listing of logins with a Facility Change or a Department Change, make sure to select the "Include Facility Changes" and "Include Department Changes" prompts when running the report.
